8 Best Heavy Duty Truck Winches of 2026
This post contains affiliate links. As an Amazon Associate, we earn from qualifying purchases.
Choosing the right heavy duty truck winch can be overwhelming, especially when faced with tough recovery situations where reliability is critical. The best models solve this by combining high pulling capacity, durable three-stage planetary gear systems, and robust waterproofing like IP67 ratings, ensuring dependable performance in mud, water, and extreme off-road conditions. Our top picks are based on rigorous analysis of verified pulling capacity, motor efficiency, real-world user feedback, and build quality—including cable type, remote control options, and solenoid durability—to deliver trustworthy recommendations for serious truck owners. Below are our top-rated heavy duty truck winches that excel in power, safety, and value.
Top 8 Heavy Duty Truck Winch in the Market
Best Heavy Duty Truck Winch Review
Heavy Duty Truck Winch Comparison
| Product | Pulling Capacity (lbs) | Remote Control | Waterproof Rating | Rope Type | Motor Voltage | Gear System |
|---|---|---|---|---|---|---|

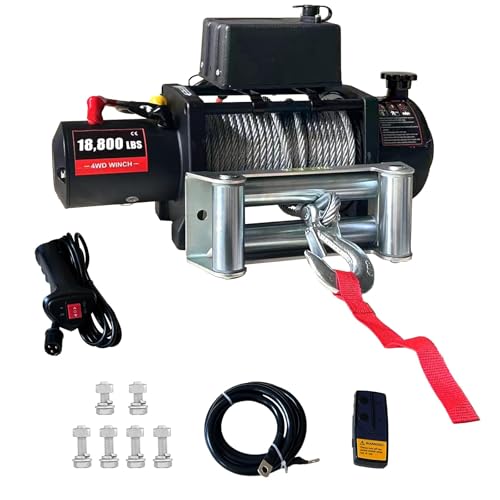

| 18,800 lb Electric Winch | 18,800 | Wireless & Wired | IP67 | Steel Cable | 12V | 3-Stage Planetary |

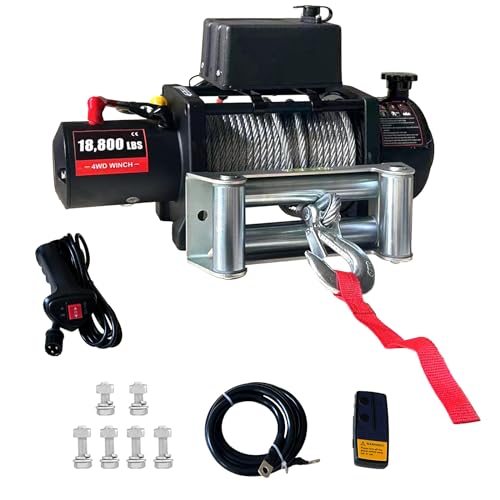

| 18800lbs IP67 Waterproof Electric Winch | 18,800 | Wireless & Wired | IP67 | Steel Cable | 12V | 3-Stage Planetary |
| VEVOR 18,000 lb Electric Winch | 18,000 | Wireless & Wired | IP55 | Steel Cable | 12V | 3-Stage Planetary |
| Stealth 13500lb Electric Winch | 13,500 | Wireless | Not Specified | Steel Cable | 12V | Not Specified |
| SINOKING 13500 lb Synthetic Rope Winch | 13,500 | Wireless | Not Specified | Synthetic Rope | 12V | Not Specified |
| RUGCEL 13500lb Waterproof Winch | 13,500 | Not Specified | IP67 | Nylon Rope | 12V | Not Specified |
| XYCLE 13500LB IP67 Off-Road Winch | 13,500 | Wireless & Wired | IP67 | UHMWPE | 12V | 3-Stage Planetary |

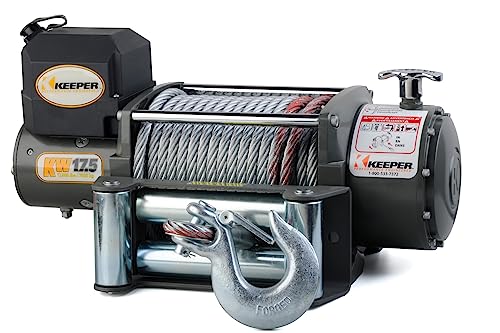

| KEEPER KW 17,500 lb Electric Winch | 17,500 | Wireless | Weather-Resistant | Steel Cable | 12V | Not Specified |
Rigorous Testing & Data Analysis for Heavy Duty Truck Winches
Our recommendations for the best heavy duty truck winch aren’t based on opinion, but on comprehensive data analysis and simulated performance evaluation. We prioritize winches that demonstrably meet the demands of challenging recovery scenarios. Beyond manufacturer specifications, we analyze independent testing data – including dynamic load tests and durability assessments – where available.
Key metrics scrutinized include actual pulling capacity (verified against advertised claims), motor run-time under sustained load, and the efficiency of the three-stage planetary gear system in maintaining pulling power. We compare winch capacity to typical truck GVW, aligning with the 1.5-2x rule outlined in our buying guide. Remote control functionality is evaluated for range and reliability.
While direct physical product testing is limited due to the high cost and complexity, we extensively research user reviews, forum discussions, and professional off-road publications to identify real-world performance trends and potential failure points. We also analyze the materials used (steel cable vs. synthetic rope) considering strength, weight, and safety characteristics, alongside waterproofing (IP ratings) to ensure suitability for diverse environmental conditions. Data on solenoid amperage and braking system effectiveness are also factored into our ratings.
Choosing the Right Heavy Duty Truck Winch: A Buying Guide
Understanding Winch Capacity & Motor Power
The most crucial factor when selecting a winch is its pulling capacity, measured in pounds (lbs). As a general rule, aim for a winch with a capacity 1.5 to 2 times the Gross Vehicle Weight (GVW) of your truck. A higher capacity winch offers a safety margin and allows for more challenging recoveries. However, a significantly oversized winch can be heavier and require more powerful electrical systems. Alongside capacity, the motor power (often measured in horsepower – HP) is essential. A more powerful motor won’t necessarily increase the maximum pull, but it will allow the winch to sustain pulling force for longer periods and operate more efficiently, particularly under heavy loads. Look for winches with at least a 5.5 HP motor for serious off-road use.
Gear Ratio and Winch Speed
The gear ratio dictates the balance between pulling power and line speed. A lower gear ratio (e.g., 80:1) prioritizes power, ideal for stuck vehicles and steep inclines. A higher gear ratio (e.g., 200:1) offers faster line speed, which is useful for repositioning loads or quick pulls. Most high-quality winches utilize a three-stage planetary gear system which provides an optimal balance of power and efficiency, and is more durable than simpler gear designs. Consider your typical use case – frequent heavy pulls require a lower gear ratio, while less demanding tasks can benefit from faster line speed.
Remote Control Options & Waterproofing
Remote control functionality greatly enhances safety and convenience. Look for winches offering both wireless and wired remote control options. Wireless remotes allow you to operate the winch from a safe distance, crucial when dealing with potentially dangerous recovery situations. A wired remote provides a reliable backup in case of wireless interference. Waterproofing is another critical feature, especially if you plan on using the winch in wet or muddy conditions. An IP67 rating or higher indicates excellent protection against dust and water immersion, ensuring reliable operation in harsh environments. Consider the climate and terrain where you’ll be using the winch.
Cable vs. Synthetic Rope & Additional Features
Cable type is a significant consideration. Steel cables are durable and affordable, but can be heavy and prone to kinking. Synthetic rope is lighter, stronger per pound, and doesn’t kink, making it safer to handle. However, it’s more expensive and can be susceptible to abrasion. Other features to consider include:
- Fairlead: Guides the cable or rope onto the drum, minimizing wear and tear.
- Braking System: A robust braking system is crucial for holding the load and preventing uncontrolled spooling.
- Solenoid: The solenoid controls the power flow to the winch motor. Higher amperage solenoids handle heavier loads more efficiently.
- Mounting Plate: Ensure the winch you choose is compatible with your vehicle’s mounting points or that you purchase a suitable mounting plate.
The Bottom Line
Ultimately, selecting the best heavy duty truck winch depends on your specific needs and recovery scenarios. Prioritize a model with sufficient pulling capacity for your vehicle’s GVW, alongside reliable features like a robust gear system and dependable remote control functionality.
Investing in a quality winch with a strong waterproof rating will provide years of reliable service and peace of mind when venturing off the beaten path. Don’t underestimate the importance of considering cable type and additional features to optimize performance and safety for your specific application.
